If you’ve ever peeked inside an electronic device, you’ve probably noticed that most PCBA circuit boards are green. But have you ever wondered Why Are Most PCBA Circuit Boards Green? The color of a PCB (Printed Circuit Board) isn’t just for aesthetics—there are historical, technical, and practical reasons behind this common choice.
The Origins of the Green PCB
The green color of PCBs comes from the solder mask, a protective layer applied over the copper traces to prevent oxidation, short circuits, and soldering errors. Historically, the earliest solder masks were made from epoxy resin, which naturally had a greenish tint due to the materials used in its formulation. Over time, this shade became the industry standard.
Practical Reasons for Green PCBs
Better Visibility for Inspection
The color of green PCBs enhances the visual contrast of high-brightness metal pads and labels, making the board easier to identify and maintain. On one hand, due to current manufacturing processes, certain line quality inspections still rely on human observation. Staring at the board under strong light for extended periods can be very tiring, and comparatively, green is the least straining color on the eyes. On the other hand, in typical PCB manufacturing, the entire product goes through processes like board fabrication and SMT. During SMT soldering, the PCB undergoes solder paste application, component placement, and final AOI verification, all of which require optical positioning and calibration. The green background color improves the recognition accuracy of these processes.
Compatibility with Automated Optical Inspection (AOI)
Many PCB assembly lines use AOI systems to detect defects. The green background helps these machines accurately identify soldering issues, misaligned components, and other flaws.
UV Light Curing Process
Most solder masks are cured using ultraviolet (UV) light. Green pigments react well to UV exposure, ensuring a smooth and even coating.
Cost and Availability
Green PCBs are one of the most widely used types, as a result, large-scale production costs are relatively low. This makes them a more economical solution, which is why many manufacturers as well as Mu Star choose green as the primary color for their products. Alternative colors (like blue, red, or black) often come at a premium.
Better Confidentiality
Green PCBs are more common than other colors, making it relatively difficult for others to guess or imitate a circuit board’s specific design, thus providing better confidentiality. Some manufacturers choose black PCBs for added security since the black color makes it harder to see the internal wiring, which can make reverse engineering more challenging.
Relatively Safe and Environmentally Friendly
Compared to other colors, green PCBs are relatively safer and more environmentally friendly. For example, blue and black inks contain cobalt and carbon, which have certain conductive properties and could potentially cause short circuits when powered. Green, by contrast, has a lower risk of short circuits. Additionally, green PCBs are generally more eco-friendly and do not typically release toxic gases when used in high-temperature environments
Are There Other PCB Colors?

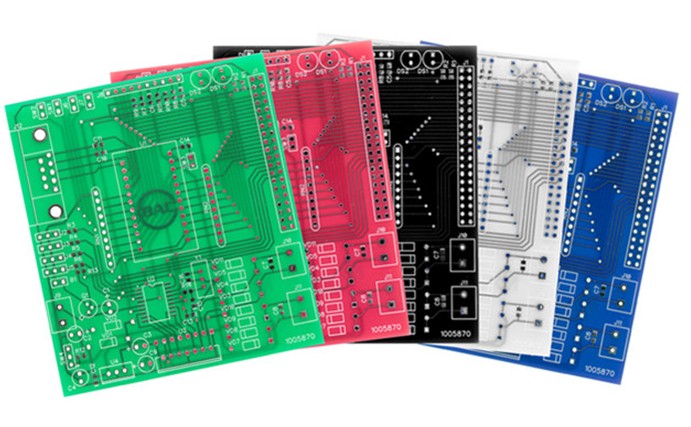

Yes! While green dominates, PCBs can come in various colors, including:
- Blue – Often used by companies like NVIDIA for aesthetic branding.
- Red – Popular in high-end motherboards (e.g., some ASUS models).
- Black – Used in premium electronics but can make inspection harder.
- White – Common in LED-based devices for better light reflection.
- Purple – Seen in some custom or gaming hardware for a unique visual appeal
- Yellow – Occasionally used for specialized industrial or prototyping boards
However, these alternatives may affect manufacturing ease, inspection accuracy, and cost.
Conclusion
Why Are Most PCBA Circuit Boards Green? The green PCB is a classic choice due to its practicality, cost efficiency, and industry tradition. While colorful boards exist for branding or special applications, green remains the reliable standard. Next time you open up an old radio or a modern gadget, you’ll know why that familiar green hue is so widespread!
Do you have a favorite PCB color? Welcome to contact us to discuss together!
